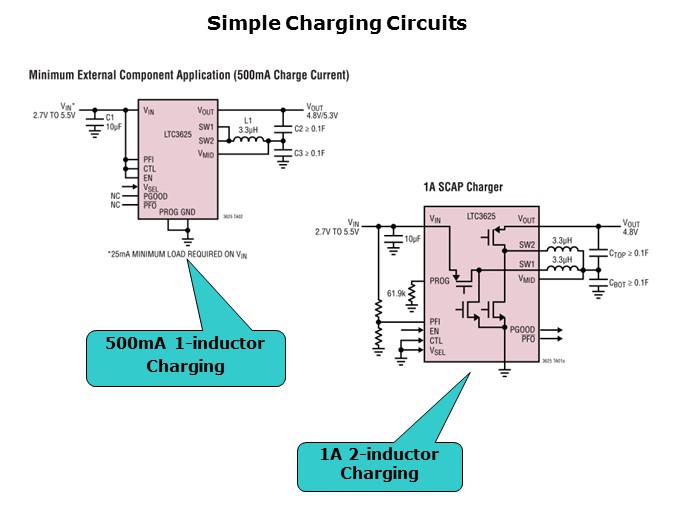

The diagrams on this slide illustrate the difference between a single inductor charge circuit and a two inductor charge circuit. A typical LTC3625 application to charge two series supercaps at either 500mA or 1A requires very few external components, as few as two, and offers a highly compact solution.
