LTM4611-Slide5

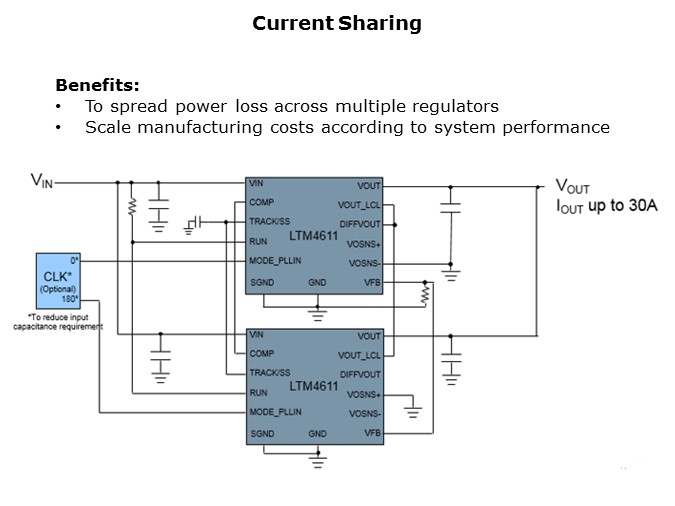

The LTM4611 can be easily paralleled to help spread thermal losses over a wider PCB area and can also be beneficial in reducing end product costs. This can become a useful strategy for customers seeking to segment their boards or systems into different price/performance tiers. An optional external clock may be used to eliminate any beat frequencies between the two devices and implement multi-phase switching to reduce the amount of input capacitance required for proper operation.

PTM Published on: 2011-05-16
