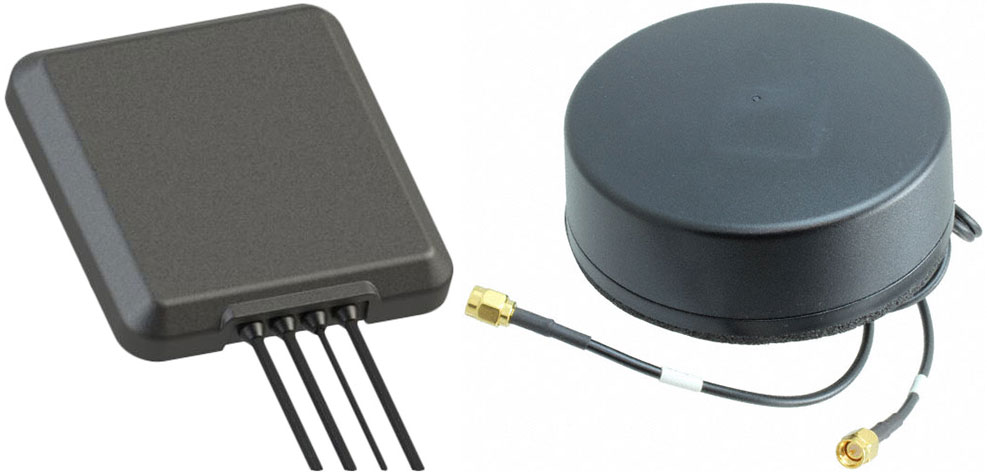

Jaguar/Disc Multi-Band Vehicular Antennas
Pulse Electronics', a YAGEO Company, Jaguar and Disc multi-band antennas for vehicular applications
Pulse Electronics', a YAGEO Company, Jaguar series supports up to 6-leads covering LTE (2x), dual-band Wi-Fi (3x), and GPS/GNSS (1x) for modern data radios/gateways from Cradlepoint, Sierra Wireless, CalAmp, and others. The Jaguar series is designed for off-ground plane applications such as fiberglass tractors, ambulances, utility vehicles, etc. and are excellent for NEMA enclosures. The W4165xx (Disc family) includes a GPS/GNSS as well as 3G or ISM antenna for IoT and machine-to-machine applications. They are excellent for pairing with devices from Multi-Tech, Digi, Pepwave, and others.
Jaguar Series
Features
- 2x MiMo: 689 MHz to 960 MHz, 1710 MHz to 2690 MHz
- Wi-Fi: 2,400 MHz to 2,500 MHz, 4,900 MHz to 5,900 MHz
- Active GNSS:
- GPS, Galileo, Glonass, Beibou
- LNA gain 30 dB
- Size: 145 mm x 135 mm x 25 mm
- Adhesive mount on plastic and glass fiber surfaces
- Mounting accessory for metallic surfaces
Applications
- Vehicle mount multi-band antennas
- High-speed LTE data and Wi-Fi
- Tracking, navigation
- Fleet management
- Utility vans (gas, water, electricity)
Disc Series
Features
- 3G (or ISM868/915) antenna:
- 824 MHz to 960 MHz, 1710 MHz to 2170 MHz
- Active GNSS antenna:
- Beidou, GPS, Galileo, Glonass
- LNA gain 30 dB
- Pre- and post-LNA filtering
- RoHS compliant
- Diameter 100 mm
- IP67
- Cable and connector options
Applications
- Vehicular use
- Utility boxes
- Smart metering
- Navigation, fleet management, tracking
Jaguar Low-Profile Multi-Band Antennas
| Image | Manufacturer Part Number | Description | Frequency Range | VSWR | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | GPSLPMB401 | RF ANT 829MHZ/2.2GHZ MODULE ADH | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 4.9GHz ~ 5.9GHz | 2.2 | 0 - Immediate | $543.70 | View Details |
Disc Multi-Band Antennas
| Image | Manufacturer Part Number | Description | Frequency Range | VSWR | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
|  | W4165SMA5 | RF ANT 829MHZ/1.94GHZ MOD CAB 5' | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | 2 | 0 - Immediate | $281.11 | View Details |
|  | W4165MM | RF ANT 892MHZ/1.58GHZ MODULE MAG | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | 2 | 0 - Immediate | $323.90 | View Details |
| | W4165MMSMA5 | RF ANT 892MHZ/1.58GHZ MOD CAB 5' | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | 2 | 1 - Immediate | $422.84 | View Details |
| | W4165MMRPSMA10 | RF ANT 892MZ/1.58GHZ MOD CAB 10' | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | 2 | 0 - Immediate | $348.75 | View Details |
| | W4165 | RF ANT 892MHZ/1.58GHZ MOD PNL MT | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | 2 | 21 - Immediate | $370.99 | View Details |
| | W4165RPSMA10 | RF ANT 892MZ/1.58GHZ MOD CAB 10' | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | 2 | 0 - Immediate | $297.57 | View Details |
Published: 2018-01-15
