Bourns Inc.

High Surge EdgMOV™ Disc Varistors - EV Series

Bourns’ high surge varistors feature superior nominal and surge current capabilities in a small disc

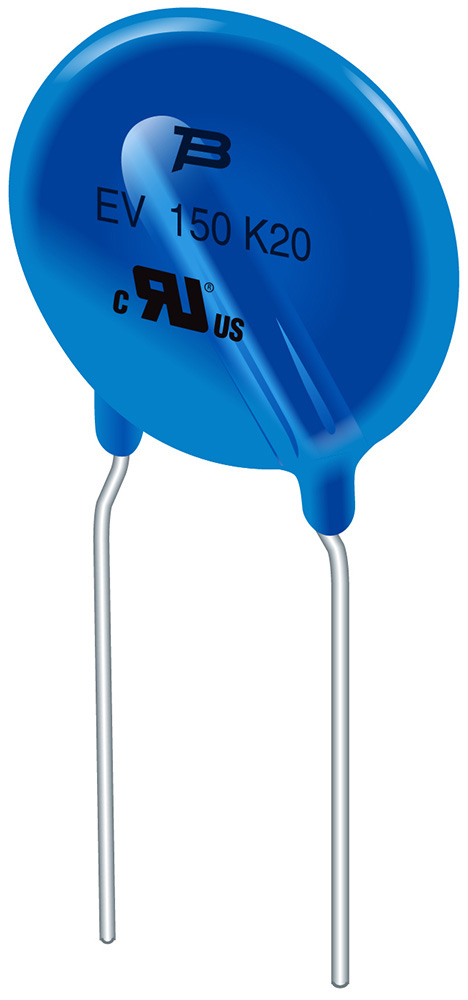

Image of Bourns' High Surge EdgMOV™ Disc Varistors - EV SeriesBourns’ EV series EdgMOV high surge disc varistors allow for the replacement of standard conventional MOV devices with one form factor smaller varistors. These varistors provide superior nominal surge ratings of 1.5 kA, 3 kA, 5 kA, and 8 kA for model sizes 7 mm, 10 mm, 14 mm, and 20 mm. The EV series features increased surge capability in a smaller form factor, allowing more compact board designs for LED lighting, smart meters, fire alarm systems, and motor drive applications.

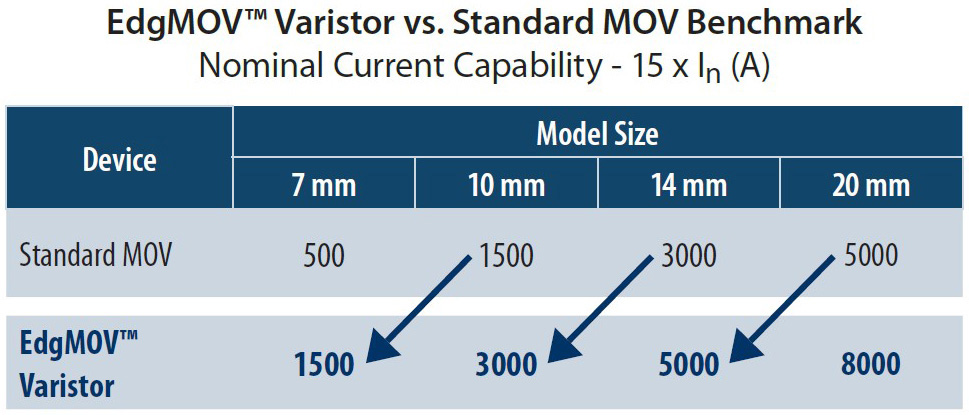

EdgMOV vs Standard MOV Comparison Chart
    Image of Bourns' EV Series Comparison Chart
Features
  • AC voltage rating: 150 V to 550 V
  • Model sizes: 7 mm, 10 mm, 14 mm, and 20 mm
  • Nominal surge ratings: 1.5 kA, 3 kA, 5 kA, and 8 kA
  • Operating temperature: -40°C to +105°C
Applications
  • White goods
  • Smart meters
  • LED lighting
  • Fire alarm systems
  • Power supplies
  • Motor drives

EV Series 1.5 kA Surge Rating - 7 mm Disc

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
VARISTOR 240V 2.5KA DISC 7MMEV150K7BL2VARISTOR 240V 2.5KA DISC 7MM1700 - Immediate$1.26View Details
VARISTOR 270V 2.5KA DISC 7MMEV175K7BL2VARISTOR 270V 2.5KA DISC 7MM2920 - Immediate$1.26View Details
VARISTOR 360V 2.5KA DISC 7MMEV230K7BL2VARISTOR 360V 2.5KA DISC 7MM2978 - Immediate$1.26View Details
VARISTOR 390V 2.5KA DISC 7MMEV250K7BL2VARISTOR 390V 2.5KA DISC 7MM2970 - Immediate$1.26View Details
VARISTOR 430V 2.5KA DISC 7MMEV275K7BL2VARISTOR 430V 2.5KA DISC 7MM2720 - Immediate$1.26View Details
VARISTOR 470V 2.5KA DISC 7MMEV300K7BL2VARISTOR 470V 2.5KA DISC 7MM0 - ImmediateSee Page for PricingView Details
VARISTOR 510V 2.5KA DISC 7MMEV320K7BL2VARISTOR 510V 2.5KA DISC 7MM0 - ImmediateSee Page for PricingView Details
VARISTOR 620V 2.5KA DISC 7MMEV385K7BL2VARISTOR 620V 2.5KA DISC 7MM2887 - Immediate$1.38View Details

EV Series 3.0 kA Surge Rating - 10 mm Disc

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
VARISTOR 240V 5KA DISC 10MMEV150K10BL2VARISTOR 240V 5KA DISC 10MM1409 - Immediate$1.62View Details
VARISTOR 270V 5KA DISC 10MMEV175K10BL2VARISTOR 270V 5KA DISC 10MM0 - ImmediateSee Page for PricingView Details
VARISTOR 360V 5KA DISC 10MMEV230K10BL2VARISTOR 360V 5KA DISC 10MM1458 - Immediate$1.62View Details
VARISTOR 390V 5KA DISC 10MMEV250K10BL2VARISTOR 390V 5KA DISC 10MM14880 - Immediate$1.62View Details
VARISTOR 430V 5KA DISC 10MMEV275K10BL2VARISTOR 430V 5KA DISC 10MM317 - Immediate$1.62View Details
VARISTOR 910V 6KA DISC 10MMEV550K10BL2VARISTOR 910V 6KA DISC 10MM351 - Immediate$1.85View Details

EV Series 5 kA Surge Rating - 14 mm Disc

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
VARISTOR 240V 8KA DISC 14MMEV150K14BL2VARISTOR 240V 8KA DISC 14MM1014 - Immediate$2.60View Details
VARISTOR 270V 8KA DISC 14MMEV175K14BL2VARISTOR 270V 8KA DISC 14MM1109 - Immediate$2.60View Details
VARISTOR 360V 8KA DISC 14MMEV230K14BL2VARISTOR 360V 8KA DISC 14MM769 - Immediate$2.60View Details
VARISTOR 390V 8KA DISC 14MMEV250K14BL2VARISTOR 390V 8KA DISC 14MM0 - ImmediateSee Page for PricingView Details
VARISTOR 430V 8KA DISC 14MMEV275K14BL2VARISTOR 430V 8KA DISC 14MM383 - Immediate$2.60View Details
VARISTOR 470V 8KA DISC 14MMEV300K14BL2VARISTOR 470V 8KA DISC 14MM0 - ImmediateSee Page for PricingView Details
VARISTOR 510V 8KA DISC 14MMEV320K14BL2VARISTOR 510V 8KA DISC 14MM699 - Immediate$2.84View Details
VARISTOR 620V 8KA DISC 14MMEV385K14BL2VARISTOR 620V 8KA DISC 14MM867 - Immediate$2.84View Details
VARISTOR 680V 8KA DISC 14MMEV420K14BL2VARISTOR 680V 8KA DISC 14MM270 - Immediate$3.03View Details
VARISTOR 750V 8KA DISC 14MMEV460K14BL2VARISTOR 750V 8KA DISC 14MM265 - Immediate$3.03View Details
VARISTOR 820V 8KA DISC 14MMEV510K14BL2VARISTOR 820V 8KA DISC 14MM290 - Immediate$3.15View Details
VARISTOR 910V 10KA DISC 14MMEV550K14BL2VARISTOR 910V 10KA DISC 14MM0 - ImmediateSee Page for PricingView Details

EV Series 8 kA Surge Rating - 20 mm Disc

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
VARISTOR 240V 12KA DISC 20MMEV150K20BL2VARISTOR 240V 12KA DISC 20MM815 - Immediate$2.96View Details
VARISTOR 270V 12KA DISC 20MMEV175K20BL2VARISTOR 270V 12KA DISC 20MM260 - Immediate$2.96View Details
VARISTOR 360V 12KA DISC 20MMEV230K20BL2VARISTOR 360V 12KA DISC 20MM804 - Immediate$2.96View Details
VARISTOR 390V 12KA DISC 20MMEV250K20BL2VARISTOR 390V 12KA DISC 20MM562 - Immediate$2.96View Details
VARISTOR 430V 12KA DISC 20MMEV275K20BL2VARISTOR 430V 12KA DISC 20MM0 - ImmediateSee Page for PricingView Details
VARISTOR 470V 12KA DISC 20MMEV300K20BL2VARISTOR 470V 12KA DISC 20MM97 - Immediate$2.96View Details
VARISTOR 510V 12KA DISC 20MMEV320K20BL2VARISTOR 510V 12KA DISC 20MM585 - Immediate$3.23View Details
VARISTOR 620V 12KA DISC 20MMEV385K20BL2VARISTOR 620V 12KA DISC 20MM0 - ImmediateSee Page for PricingView Details
VARISTOR 680V 12KA DISC 20MMEV420K20BL2VARISTOR 680V 12KA DISC 20MM81 - Immediate$3.47View Details
VARISTOR 750V 12KA DISC 20MMEV460K20BL2VARISTOR 750V 12KA DISC 20MM0 - ImmediateSee Page for PricingView Details
VARISTOR 820V 12KA DISC 20MMEV510K20BL2VARISTOR 820V 12KA DISC 20MM312 - Immediate$3.59View Details
VARISTOR 910V 15KA DISC 20MMEV550K20BL2VARISTOR 910V 15KA DISC 20MM418 - Immediate$3.59View Details
Published: 2024-01-11
